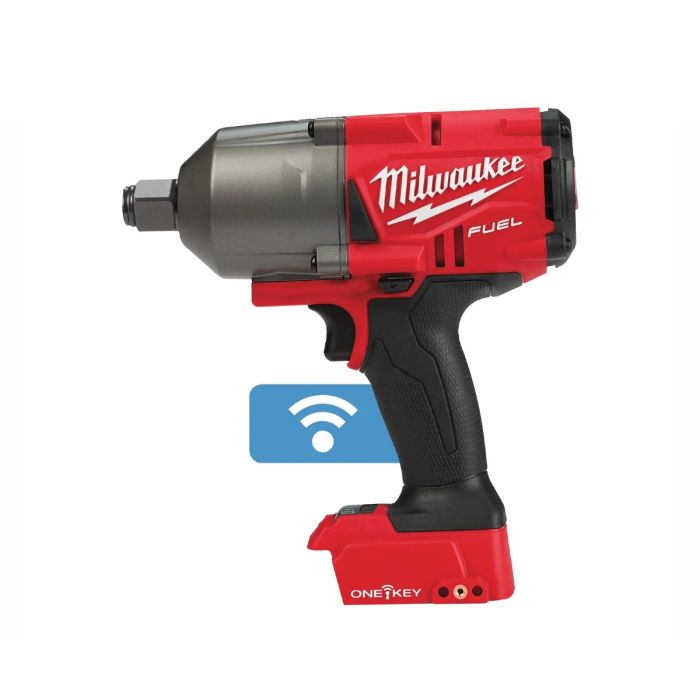

Milwaukee ONE KEY FUEL ¾ Quarter Inch High Torque Impact Wrench with Friction Ring

The Milwaukee Tool ONE KEY FUEL ¾ Quarter Inch High Torque Impact Wrench with Friction Ring is a powerful bare unit engineered for professionals who already operate within the Milwaukee M18 battery platform and demand maximum torque, precision control, and long term durability. Built for the toughest fastening and bolt removal tasks, this impact wrench is ideally suited to construction, heavy plant maintenance, transport, steel erection, and industrial applications.

Delivering up to 1627 Nm of fastening torque and an exceptional 2034 Nm of nut busting torque, this tool is capable of loosening seized, corroded, and high tension fasteners with confidence. Despite its immense power, the compact 213 mm body length improves access in confined and restricted working areas, reducing operator fatigue and improving productivity on demanding jobs.

ONE KEY technology transforms the tool into a fully customisable fastening solution. Through the ONE KEY app, users can precisely adjust torque output and speed settings to suit specific applications, ensuring consistent fastening results while reducing the risk of overtightening or fastener damage. Integrated tool tracking and remote lock functionality provide added security and inventory control, making this bare unit ideal for professional fleets and shared job sites.

The ¾ Quarter Inch friction ring drive allows for fast socket changes while maintaining a secure hold under high torque loads. Four Mode DRIVE CONTROL enables quick switching between performance levels, including a dedicated bolt removal mode that delivers maximum breakaway force before slowing for greater control. Powered by Milwaukee’s advanced FUEL technology platform, this impact wrench combines a high efficiency brushless motor with intelligent electronics to deliver outstanding power, runtime, and durability when paired with compatible M18 batteries.

Key Features

• High torque cordless impact wrench delivering up to 1627 Nm fastening torque

• Powerful nut busting torque up to 2034 Nm for seized fasteners

• ONE KEY customisation for precise speed and torque control

• Integrated ONE KEY tool tracking and remote locking functionality

• Compact 213 mm length for improved access in tight spaces

• ¾ Quarter Inch friction ring drive for secure and fast socket changes

• Four Mode DRIVE CONTROL for maximum versatility

• Advanced brushless motor for increased efficiency and tool life

• Compatible with all Milwaukee M18 batteries

• Supplied as a bare unit without battery or charger

Technical Specifications

• Drive size: ¾ Quarter Inch square

• Fastening torque: 702 1138 1627 Nm

• Nut busting torque: 2034 Nm

• No load speed: 0 to 800 0 to 1300 0 to 1800 0 to 1800 rpm

• Impact rate: 0 to 850 0 to 1850 0 to 2400 0 to 2400 ipm

• Maximum bolt diameter: M33

• Tool length: 213 mm

• Weight with battery: 3.5 kg with M18 5.0Ah battery

• Sound pressure level: 98.5 dB A

• Sound power level: 109.5 dB A

• Vibration level: 15.9 m per second squared

• Battery platform: Milwaukee M18

• Supplied in: HD Box

• Standard equipment: Belt hook
