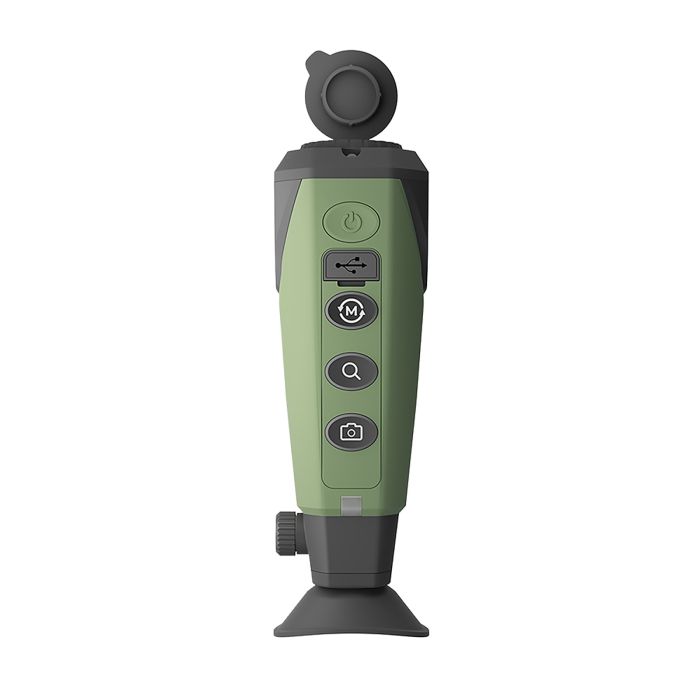

TOPDON TS004 Thermal Imaging Monocular

Thermal Monocular For Outdoor Observation And Search Work

Outdoor thermal viewing needs a different type of tool from a workshop inspection camera. The TOPDON TS004 is a thermal imaging monocular designed for spotting heat signatures in darkness, light fog and difficult outdoor conditions, helping users observe wildlife, check land, navigate trails and support search work when normal vision is not enough.

The TS004 uses a 256 x 192 infrared sensor, 13 mm lens and 50 Hz refresh rate to provide smooth thermal viewing through a compact handheld monocular body. It is designed for outdoor users, farmers, site staff, land managers and anyone who needs a portable way to scan distance without relying on visible light.

Its 450-yard detection range, 32 GB built-in storage and long battery life make it practical for longer observation sessions. IP67 protection helps the unit cope with wet, dusty and rugged environments, while digital zoom and multiple colour palettes make it easier to adapt the image to different surroundings and target types. Captured images and videos can also support later review after a field check, patrol or observation session.

Choose the TS004 when the main requirement is outdoor observation rather than contact-style temperature measurement. For workshop diagnostics or temperature measurement on equipment, TC003 or TC005 is more appropriate. For compact phone-connected thermal inspection, TC001, TC002C or TS001 is the better route.

TS004 Thermal Monocular Highlights

The TS004 is focused on outdoor viewing, distance detection and reliable field use rather than close-range workshop measuring.

• Thermal imaging monocular with 256 x 192 infrared resolution
• 450-yard detection range for outdoor observation and search work
• 50 Hz refresh rate for smoother moving thermal images
• 1x, 2x, 4x and 8x digital zoom for distance scanning
• IP67 protected body with 11-hour operating battery life
• 800 g gross packaged weight with carry bag and accessories
