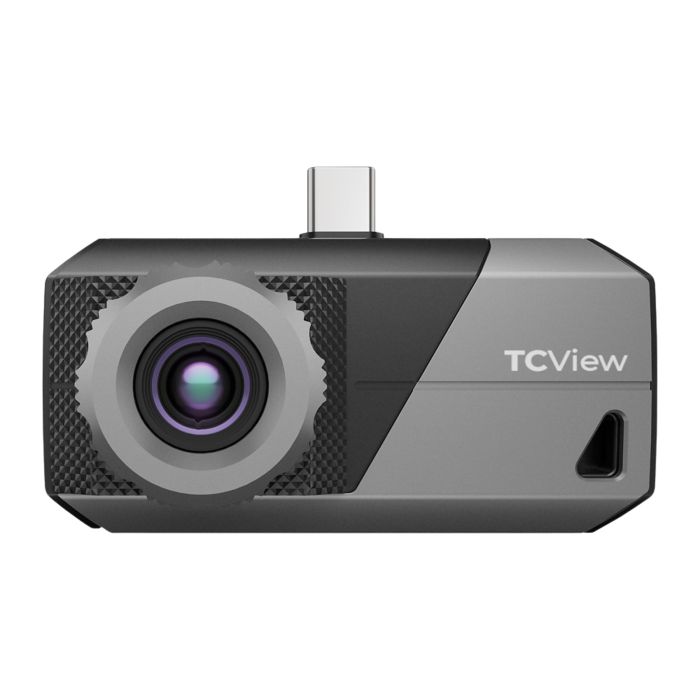

TOPDON TS001 Android Long-Focus Thermal Camera

Long-Focus Thermal Imaging For Android And Windows Inspection

Standard compact thermal cameras are useful at close range, but some inspection jobs need a narrower view and clearer focus at distance. The TOPDON TS001 is a long-focus thermal camera for compatible Android devices and Windows laptops, giving technicians and inspectors a more focused thermal view for near and far targets.

The TS001 is useful where the inspection target may not always be directly in front of the user. It can support building checks, outdoor cable inspection, automotive heat checks, electrical work, PCB inspection and equipment monitoring. The adjustable 9 mm lens helps improve clarity across different distances, giving more control than a fixed-focus phone thermal attachment.

With 256 x 192 infrared resolution, 25 Hz frame rate and a -20 to 550 degrees C measurement range, the TS001 supports practical temperature investigation in many working environments. Its app-based measurement and observation modes help users identify hot and cold areas, track temperature differences and document findings from a connected device. The focused lens makes it especially useful when the inspection target is small, distant or difficult to approach safely.

Choose the TS001 when Android or Windows compatibility is required and the job benefits from adjustable focus or longer observation distance. For closer general phone-based inspection, TC001 is simpler. For a standalone display, TC003 or TC005 is a better fit.

TS001 Long-Focus Thermal Camera Highlights

The TS001 is built for users who need a compact thermal camera with more focusing flexibility than a standard short-range phone attachment.

• USB-C long-focus thermal camera for compatible Android and Windows devices
• Adjustable 9 mm lens for near and distance inspection work
• 256 x 192 infrared resolution with 25 Hz refresh rate
• Measures from -20 to 550 degrees C with point, line and area checks
• Suitable for building, automotive, electrical, PCB and outdoor inspection tasks
• 220 g gross packaged weight for easy mobile storage
