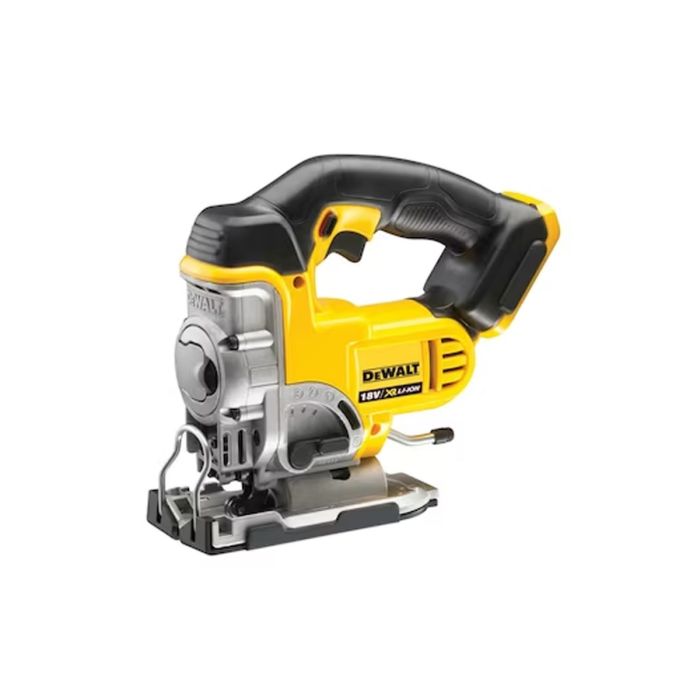

DeWalt DCS331N-XJ 18V XR Jigsaw Bare Unit

Precision cutting is about more than speed — it’s about control, accuracy and finish quality. The DeWalt DCS331N-XJ 18V XR Jigsaw is engineered for trade professionals who need smooth, accurate cuts across timber, sheet materials and light metals without being tied to a mains lead.

Powered by DeWalt’s 18V XR Lithium-Ion platform, this jigsaw features a highly efficient PM47 fan-cooled motor with replaceable brushes, delivering up to 3,000 strokes per minute for rapid cutting while maintaining consistent performance under load. The 26mm stroke length provides aggressive material removal when required, while the variable speed trigger allows precise control for detailed or delicate work.

Built for Accuracy and Versatility

The all-metal lever-action keyless blade clamp allows quick and secure blade changes and accepts standard T-shank blades, making it compatible with a wide range of cutting applications. The tool-free adjustable shoe bevels up to 45° left and right, with preset detents at 0°, 15°, 30° and 45° for quick, repeatable angle cuts.

For material-specific performance, the jigsaw features:

• 4-position orbital action for faster wood cutting

• 3-position pendulum control to adjust cut aggressiveness

• Dust blower system to keep the cut line clear

• Removable anti-scratch shoe cover to protect finished surfaces

A patented anti-vibration counterbalance mechanism and rubber overmould grip reduce user fatigue and improve control during extended use.

Cutting Capacities

• Wood: up to 135 mm

• Aluminium: up to 25 mm

• Steel: up to 10 mm

This makes it ideal for cabinetry, kitchen fitting, flooring installation, roofing work, stud wall trimming, and sheet metal fabrication.

Serviceable & Trade Ready

The modular component design allows easier servicing, extending tool lifespan. As part of the DeWalt XR 18V system, it integrates seamlessly with existing XR batteries and chargers.

Supplied as a bare unit — battery and charger sold separately.

Key Features

• 18V XR Lithium-Ion cordless jigsaw

• PM47 fan-cooled motor with replaceable brushes

• Up to 3,000 strokes per minute

• 26mm stroke length

• Keyless T-shank blade change system

• Tool-free bevel adjustment up to 45° (both directions)

• 4-position orbital action

• 3-position pendulum control

• Anti-vibration counterbalance mechanism

• Dust blower for clear cut line

• Rubber overmould grip

• Bare unit – battery and charger not included

Technical Specifications

• Voltage: 18V

• Power output: 400W

• No load stroke rate: 0–3,000 spm

• Stroke length: 26 mm

• Max cutting capacity (wood): 135 mm

• Max cutting capacity (aluminium): 25 mm

• Max cutting capacity (steel): 10 mm

• Bevel capacity: 45° left/right

• Length: 305 mm

• Weight: 2.3 kg

• Blade type: T-shank
