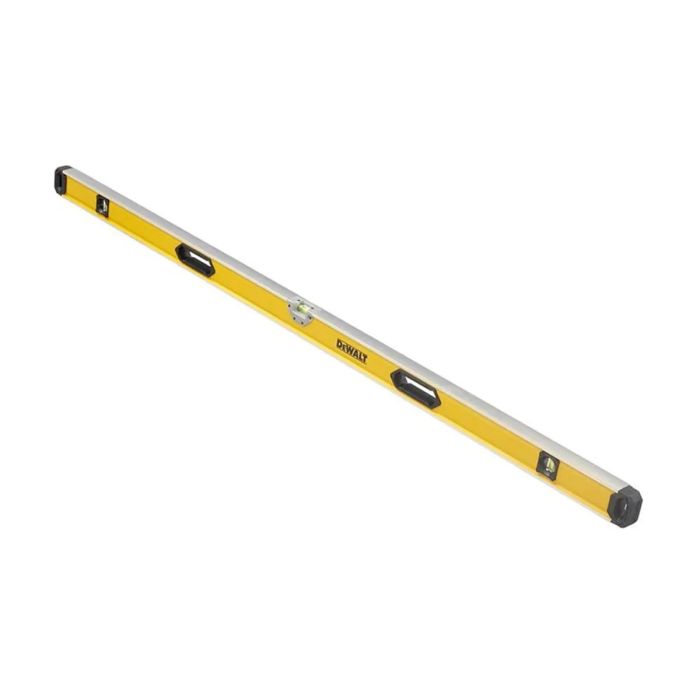

DeWalt DWHT043172 1800mm 6ft Box Beam Level

When working across extended surfaces such as structural framing, long partition walls, concrete forms, or steel installations, precision over distance becomes critical. The DeWalt DWHT043172 1800mm Box Beam Level is designed for tradespeople who require strength, accuracy, and durability across larger spans.

Constructed from a rigid aluminium box beam profile, this level offers superior torsional strength compared to standard I beam designs. The large cross section enhances resistance to bending, helping the tool retain calibration even after heavy site use. Two precision milled measuring faces ensure consistent surface contact and support professional accuracy rated at ±0.5mm per metre.

The level incorporates three solid acrylic block vials including two vertical and one horizontal vial, providing complete versatility for horizontal and vertical alignment tasks. The centre vial is magnified to improve readability, allowing faster checks in low light or at awkward angles. A die cast centre vial holder strengthens the internal structure and maintains alignment under demanding conditions.

The bridged centre vial design increases overall body rigidity and provides a continuous working edge, ideal for marking and checking across long materials. Robust metal reinforced over moulded end caps protect the frame from damage if dropped or knocked during transport.

Integrated carry hand holes improve handling and balance, especially when positioning the level overhead or across wide spans. Hang holes at both ends allow convenient storage in workshops, site cabins, or service vehicles.

This 1800mm level is particularly suited for carpenters, builders, steel erectors, kitchen fitters, and contractors who need accurate long length alignment across structural and finishing work.

Key Features

• 1800mm 6ft professional box beam spirit level

• Accuracy rated at ±0.5mm per metre

• Reinforced aluminium box beam construction

• Two precision milled measuring surfaces

• Three solid block vials for durability

• Two vertical vials and one horizontal vial

• Magnified centre vial for enhanced readability

• Bridged centre vial for continuous working edge

• Die cast centre vial holder for structural integrity

• Shock resistant metal reinforced over moulded end caps

• Integrated carry hand holes

• Hang holes for easy storage

Specifications

• Model: DWHT043172

• Length: 1800mm 6ft

• Profile Type: Box Beam

• Accuracy: ±0.5mm per metre

• Number of Vials: 3

• Measuring Faces: 2 Milled Surfaces

• Continuous Edge: Yes

• Material: Aluminium body

• Weight: 2.40 kg

• EAN: 3253560431723

• Pack Quantity: 1

• Warranty: 1 Year Limited Warranty
