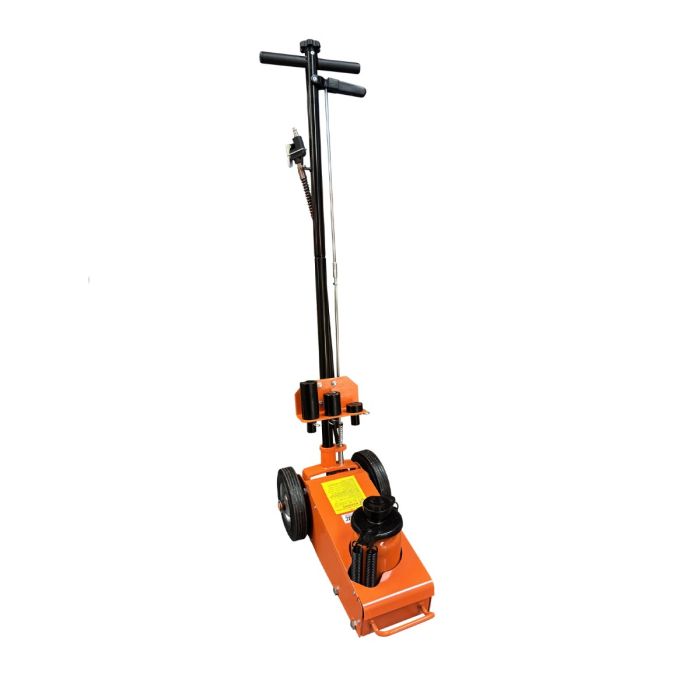

When it comes to servicing heavy commercial fleet vehicles, agricultural machinery, or HGVs, you need uncompromising lifting power. The US SNAP MAC 22 Tonne Air Service Trolley Jack combines a highly robust welded steel chassis with an incredibly powerful pneumatic/hydraulic lifting mechanism. Hook it up to your garage’s compressed air system, and you can achieve a massive 22-tonne lift with the simple press of a valve, completely eliminating the time-consuming and strenuous manual pumping associated with traditional jacks. Designed with heavy-duty workshops in mind, its long handle and heavy-duty wheels make positioning this formidable tool completely manageable.
Key Features
-
Massive 22-Tonne Capacity: Effortlessly lifts up to 22,000 kg (48,502 lbs), making it ideal for HGVs, buses, farm machinery, and commercial trucks.
-
Air-Hydraulic System: Plugs into standard shop air compressors (120-200 PSI) for incredibly fast, smooth, and fatigue-free lifting operations.
-
Long-Reach Positioning: Comes with a long 123cm T-handle assembly ("heel"), making it exceptionally easy to roll deep beneath wide commercial vehicles safely.
-
Adjustable Lift Saddle: Features a built-in heavy-duty adjusting screw (8.5 cm) for precisely matching vehicle clearance limits before engaging the main ram lift.
-
Ultra-Durable Chassis: Built to endure daily abuse in professional commercial tire shops, fleets, and heavy diesel mechanic workshops.
Specifications
-
Brand: US SNAP MAC
-
Lifting Capacity: 22 Tonne / 22,000 kg (48,502 lbs)
-
Working Pressure: 7.4 - 8.4 Bar (120 - 200 PSI)
-
Minimum Profile Height: 255 mm (10.04")
-
Maximum Lifting Height: 545 mm (21.46") (Combined min height + ram travel + screw extension)
-
Hydraulic Ram Lifting Stroke: 125 mm (4.92")
-
Adjustable Screw Extension: 85 mm (3.35")
-
Handle / Lever Length: 123 cm (48.43")
-
Total Height (Handle upright): 140 cm (55.12")
-
Chassis Dimensions (L x W x H): 55 cm x 29 cm x 20 cm
-
Initial Frame/Ground Clearance: 80 mm (3.15")
-
Operation Type: Pneumatic over Hydraulic
What's Included
-
1 x US SNAP MAC 22 Tonne Air Hydraulic Service Jack Base
-
1 x Two-Piece Long Handle/Valve Assembly
-
1 x Braided Air Hose / Quick Connects
-
1 x User and Maintenance Manual
