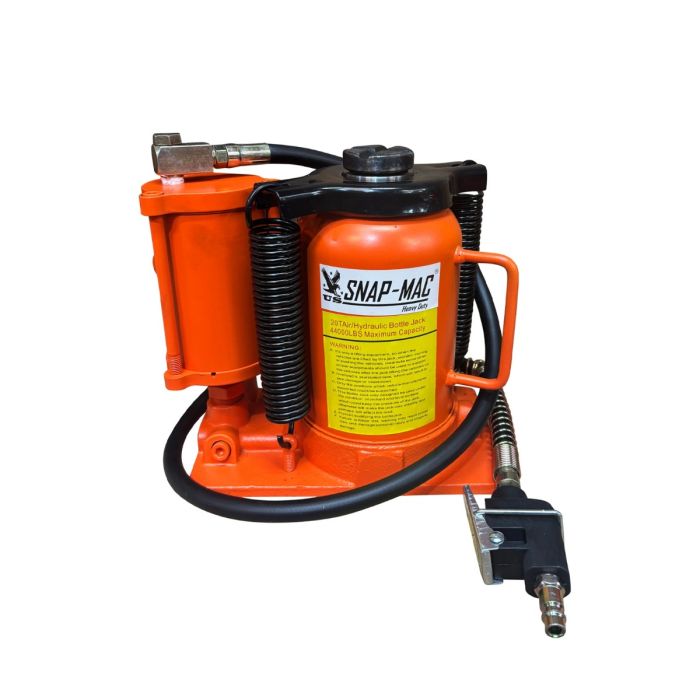

The US SNAP MAC USBJ20-A is a robust, heavy-duty bottle jack engineered for professional garage and roadside service environments. Its primary advantage is the integrated pneumatic pump, which utilizes compressed air (120–180 psi) to lift up to 20 tonnes without the physical fatigue associated with traditional manual jacks. For environments where an air compressor is not available, the jack retains a manual hand pump for full versatility.
Built with a broad, stable base and a heavy-duty steel frame, this jack provides the safety and stability required for high-capacity lifting. The unit includes a hardened screw extension, providing an additional 80mm of adjustable height to ensure the jack makes firm contact with the vehicle chassis. A safety bypass valve prevents overloading, ensuring the internal hydraulic components are protected during use.
Key Features:
-
Dual Operation: Operates both pneumatically for speed and manually for precise, controlled lifting.
-
Massive Lifting Power: 20,000kg capacity, making it suitable for HGV, agricultural, and industrial maintenance.
-
Adjustable Reach: Includes a heat-treated extension screw to close the gap between the ram and the lifting point.
-
Safety Overload Valve: Integrated bypass system prevents the jack from being used beyond its rated capacity.
-
Durable Build: High-grade steel construction with a corrosion-resistant coating for long-term workshop use.
Technical Specifications:
-
Lifting Capacity: 20 Tonne (20,000kg)
-
Working Air Pressure: 120 - 180 psi (8 - 12 Bar)
-
Minimum Height: 260mm
-
Maximum Height: 510mm
-
Hydraulic Lifting Height: 170mm
-
Screw Adjustment Height: 80mm
-
Air Inlet: 1/4" NPT (Standard Fitting)
What’s Included:
-
1 x 20 Tonne Air/Hydraulic Bottle Jack
-
1 x Heavy-Duty Air Hose with Trigger Control
-
1 x Two-Piece Manual Pump Handle
-
1 x 1/4" Air Connector fitting
