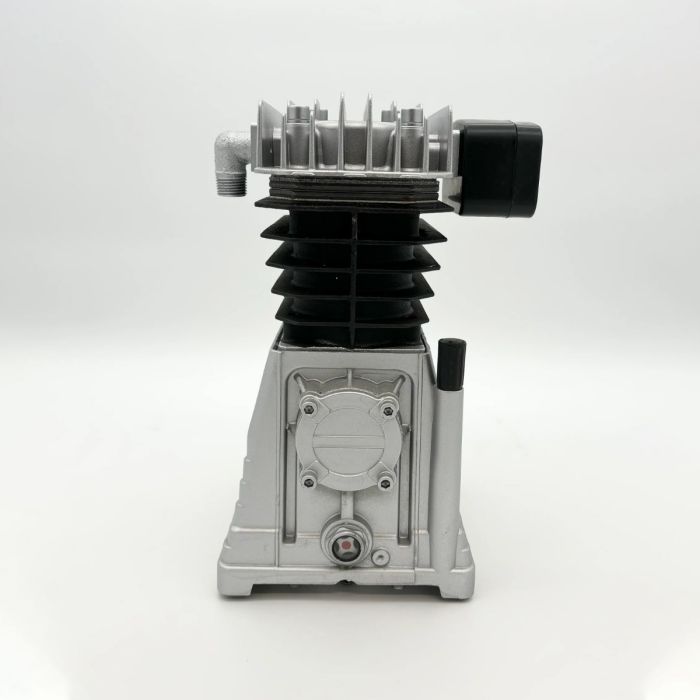

The US SNAP MAC 2070-3KW is a premium V-Twin replacement bare pump, ideal for refurbishing or upgrading existing 100L to 200L air compressors. Constructed from high-grade aluminium for superior heat dissipation, this pump is engineered to maintain a cooler operating temperature, thereby extending the life of the pistons and rings during heavy duty cycles.
As an oil-lubricated unit, it features an easy-access oil sight glass for rapid maintenance checks and a large flywheel designed to provide consistent cooling airflow over the cylinder fins. The 398L/min displacement (approx. 14.1 CFM) makes it a versatile powerhouse for workshop applications including continuous spray painting, running heavy-duty impact wrenches, and pneumatic sanding.
Key Features:
-
Twin-Cylinder Power: Dual-piston configuration ensures rapid pressure build-up and a consistent volume of compressed air.
-
Enhanced Cooling: The lightweight aluminium body and oversized flywheel fins optimize airflow to prevent overheating.
-
Standard Compatibility: Fits most standard 3KW/4HP belt-driven compressor chassis and motors.
-
Oil-Lubricated Design: Precision-machined internal components are bathed in oil for smooth operation and minimal friction wear.
-
Air Filtration: Equipped with high-flow air filters to ensure only clean, debris-free air enters the compression chambers.
Technical Specifications:
-
Model Number: 2070 (Twin Cylinder)
-
Motor Requirement: 3KW (4HP)
-
Displacement (Exhaust Volume): 398L/min (14.1 CFM)
-
Configuration: Single-Stage V-Twin
-
Body Material: High-Grade Aluminium
-
Lubrication: Oil Lubricated
-
Working Principle: Piston Reciprocation
-
Recommended Pressure: 8–10 Bar (Max)
What’s Included:
-
1 x Twin-Cylinder Air Compressor Bare Pump
-
1 x Drive Flywheel (Large cooling fins)
-
2 x High-Flow Air Filters
-
1 x Oil Breather / Crankcase Vent
-
1 x Bolt and Fitting Set
