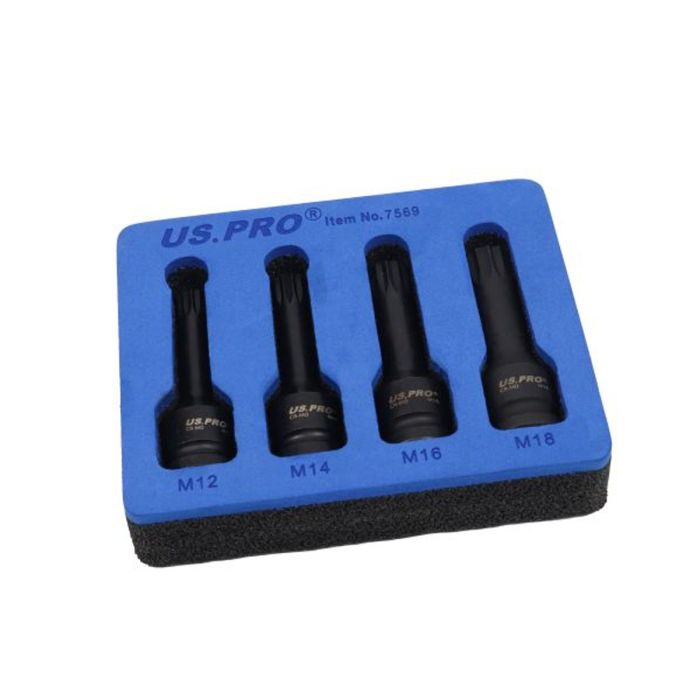

US PRO 7569 – 4-Pc 1/2″ Impact Spline (XZN) Socket Set for VAG M12–M18
Impact-rated spline (XZN) bit sockets for VAG vehicles. Sizes M12, M14, M16, M18, 1/2″ drive, CR-MO steel with phosphate finish. 78 mm length, 25 mm OD. Supplied in an EVA storage tray.
Supported Payment Types
US PRO Industrial 7528 – 10-Pc 1/2″ Drive Impact Tamper Torx®
Previous
Built for high-torque VAG fasteners, the US PRO 7569 set covers the most-used spline/XZN sizes on Volkswagen–Audi Group applications. Each 1/2″ drive bit socket is forged from chrome-molybdenum (CR-MO) for strength and finished in phosphate for corrosion protection. The compact 78 mm length and 25 mm outer diameter help access hubs and suspension fixings. Ideal for jobs like rear hub nuts on Touran (M12), LT/Transporter (M14), Sharan (M16) and Golf (M18), and equally useful across general automotive and workshop tasks. Supplied neatly in an EVA tray for tool-box organisation.
What’s included (4 pcs)
-
M12, M14, M16, M18 spline/XZN bit sockets
-
Drive: 1/2″ square
-
Length: 78 mm • Outer diameter: 25 mm
-
Material: CR-MO (impact grade) • Finish: Phosphate
-
Storage: EVA tray
-
Brand: US PRO • Code: 7569
Key benefits
-
Correct XZN profile for VAG hub/suspension fixings
-
Impact-rated CR-MO for durability under load
-
Anti-corrosion phosphate finish
-
Workshop-friendly EVA tray keeps sizes together
