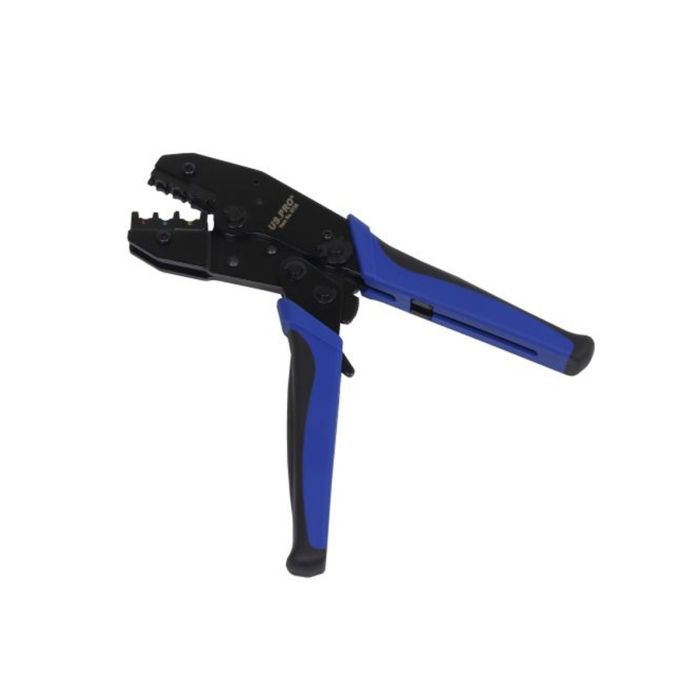

US Pro 6726 Professional Ratchet Crimping Tool for Insulated Terminals

Reliable electrical connections depend on correct crimp pressure and consistent terminal compression. Insufficient force can result in loose connections, while excessive force can damage terminals and conductors. The US Pro 6726 Professional Ratchet Crimping Tool for Insulated Terminals is engineered to provide controlled, repeatable crimps across the most commonly used insulated terminal sizes.

This tool is designed for cables ranging from 0.5 mm² to 6.0 mm², covering the standard red, blue, and yellow insulated terminals used in automotive, electrical, and general wiring applications. The jaws are colour coded, allowing quick visual identification of the correct crimp size and reducing the risk of incorrect terminal selection.

A built in ratchet action mechanism ensures each crimp is completed fully before release, applying consistent compression without excessive hand effort. This not only improves crimp quality but also reduces fatigue during repetitive tasks, making the tool ideal for both workshop environments and mobile service work.

With an approximate length of 220 mm, the tool offers good leverage and control while remaining easy to handle in confined spaces. Its robust construction and high compression design make it suitable for regular professional use, while remaining simple enough for confident DIY operation.

Whether fitting terminals to wiring looms, installing accessories, or carrying out electrical repairs, this ratchet crimping tool delivers dependable results and long term connection reliability.

Key Features

• Professional ratchet crimping tool for insulated terminals

• Suitable for red, blue, and yellow insulated crimps

• Cable size range from 0.5 mm² to 6.0 mm²

• Colour coded jaws for quick and accurate terminal selection

• Ratchet action provides strong, consistent crimping force

• High compression design for secure electrical connections

• Approximate length 220 mm for improved leverage

• Ideal for automotive, electrical, workshop, and DIY use

Specifications

• Brand: US Pro

• Model Code: 6726

• Product Type: Ratchet Crimping Tool for Insulated Terminals

• Terminal Type: Insulated

• Crimp Colours Supported: Red, Blue, Yellow

• DIN Cable Sizes:

  • 0.5 to 1.0 mm²

  • 1.5 to 2.5 mm²

  • 4.0 to 6.0 mm²

• AWG Range:

  • 22 to 18

  • 16 to 14

  • 12 to 10

• Crimping Mechanism: Ratchet action

• Length: Approx. 220 mm

• Application: Automotive, electrical, workshop, and general wiring

• Estimated Weight: 0.42 kg
