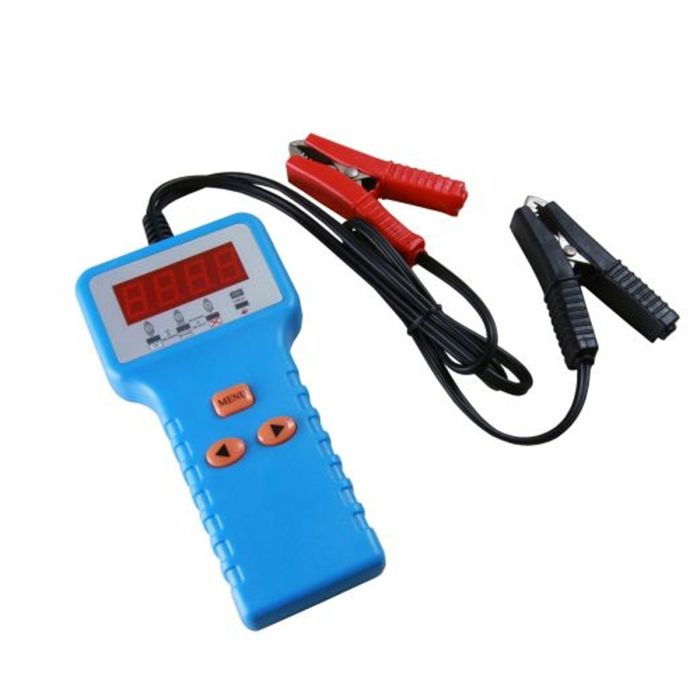

US PRO 6650 – 12V Battery Analyser & Charging/Starting System Tester
Compact 12V battery analyser for batteries and vehicle charging/starting systems. Passive test method won’t drain the battery. Digital + LED display, 7–15 V test range, 200–1200 CCA (SAE), supports Regular/AGM/GEL to SAE, DIN, EN, IEC, CA standards.
Supported Payment Types
Product name US PRO 2056 Long-Reach Hose Clamp Pliers – Flexible Shaft, Locking
Previous
Quickly check battery health and charging performance with the US PRO 6650. It uses a passive testing method, so it doesn’t discharge the battery—ideal for on-vehicle checks and even discharged batteries. Clip on via the 600 mm insulated crocodile leads, read results on the digital display with LED status, and verify both the battery state and 12V charging/starting systems. Compatible with Regular (Flooded), AGM and GEL batteries and multiple rating standards for broad workshop coverage.
Key features / specs
-
Application: 12V battery, charging & starting system tests
-
Method: Passive (no drain/discharge)
-
Display: Digital + LED status indicators
-
Voltage test range: 7–15 VDC
-
CCA test range: 200–1200 CCA (SAE)
-
Battery types: Regular/Flooded, AGM, GEL
-
Standards supported: SAE, DIN, EN, IEC, CA
-
Leads: 600 mm cable with insulated crocodile clips
-
Compliance: CE, RoHS; manufacturer to ISO 9001:2008
-
Brand: US PRO • Code: 6650
What’s included
-
12V battery analyser unit
-
600 mm clamp leads (insulated crocodile clips)
-
Quick-start instructions
Usage tips
-
Connect red to +, black to –; ensure good clamp contact.
-
Test with all loads off; then repeat with engine running to verify alternator output.
-
Compare CCA reading to the battery’s rated CCA on the label.
