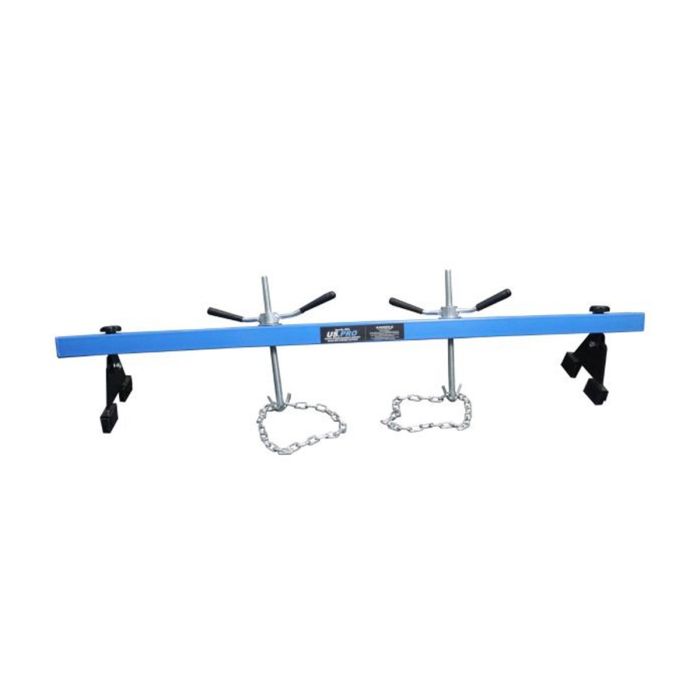

US PRO 5933 Engine and Gearbox Support Beam 500kg

The US PRO 5933 Engine and Gearbox Support Beam 500kg is a robust and practical solution for supporting engines during gearbox, transmission, and drivetrain work. Designed to span across the engine bay, this support beam allows engines to be securely held in position while components beneath are removed or adjusted, reducing strain and improving safety during maintenance.

With a maximum load capacity of 500kg, the beam is suitable for a wide range of vehicles. The adjustable operating width from 730mm to 1480mm allows it to fit across many engine bays, making it a versatile tool for workshops and general vehicle servicing. Height adjustment up to 200mm provides precise positioning, allowing the engine to be raised or lowered gradually as required.

Constructed from strong steel and finished with a durable powder coated coating, the beam is built to withstand regular use while resisting corrosion. Rubber feet pads sit securely on the vehicle bodywork, helping prevent scratches or damage during operation. Fine adjustment screws allow accurate load balancing, ensuring the engine remains level and stable throughout the job.

The double hook support mechanism improves balance and weight distribution, while the height adjusters with bearings provide smooth and controlled adjustment. Supplied with two 680mm lengths of chain, the beam is ready to use straight out of the box.

Ideal for gearbox removal, transmission work, engine mounting replacement, and other under bonnet maintenance tasks, this engine support beam is a reliable addition to any vehicle servicing setup.

Key Features

• Designed to support engines during gearbox and transmission removal

• Maximum load capacity of 500kg

• Adjustable operating width to suit different engine bays

• Height adjustment for precise engine positioning

• Strong steel construction with protective powder coated finish

• Rubber feet pads to help prevent vehicle damage

• Fine adjustment screws for accurate load balancing

• Double hook support system for improved stability

• Height adjusters with bearings for smooth operation

• Supplied with two support chains

Specifications

• Application: Engine and gearbox support

• Maximum load capacity: 500kg

• Operating width range: 730mm to 1480mm

• Height adjustment range: 0 to 200mm

• Construction material: Steel

• Finish: Powder coated

• Support type: Double hook mechanism

• Adjustment system: Fine adjustment screws with bearing supported adjusters

• Included accessories: Two 680mm support chains

• Brand: US PRO

• Model: 5933
