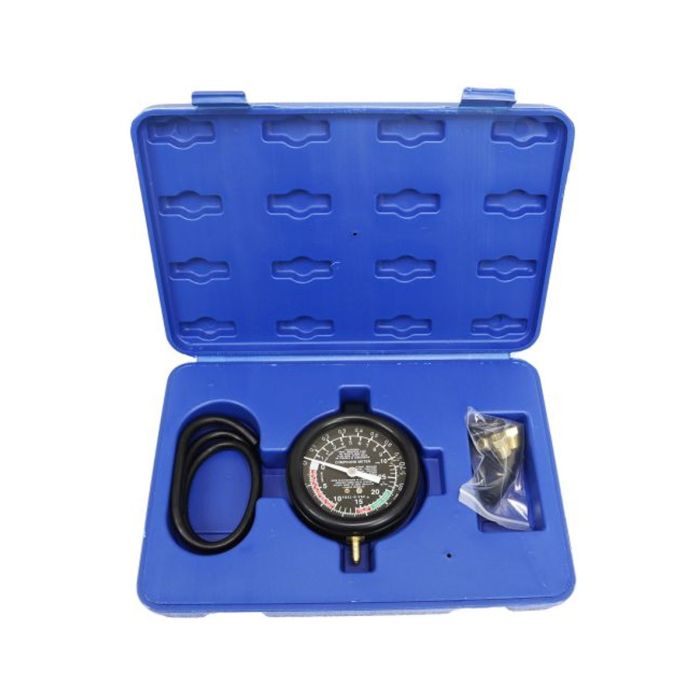

US PRO 5395 Vacuum, Fuel Pump & Carburettor Valve Pressure Tester
80 mm colour-coded gauge for diagnosing fuel and vacuum systems. Measures vacuum up to 28 inHg and pressure up to 10 PSI. Includes long heavy-duty hose, 14 mm & 17 mm manifold adapters and brass fittings for common connections.
Supported Payment Types
US PRO 5478 Hand Riveter – Double-Handle Long Arm
Previous
Quickly check fuel delivery and vacuum integrity on carburetted and many injected engines. The US PRO 5395 tester uses a large 80 mm analogue gauge with colour-coded, easy-read scales to indicate normal and fault conditions. It measures pressure to 10 PSI (≈0.7 kg/cm²) and vacuum to 28 inHg (≈70 cm-Hg). A long, heavy-duty rubber hose reaches the engine bay comfortably, while the supplied 14 mm and 17 mm adapters and brass fittings let you connect to fuel pump lines, carburettor ports and vacuum circuits. Ideal for pinpointing worn pumps, leaking valves and vacuum leaks.
What’s included
- 80 mm gauge with colour-coded scales (vacuum & pressure)
- Heavy-duty rubber hose (long reach)
- Manifold adapters: 14 mm and 17 mm
- Brass fittings: 1/4"-18 M × 1/8"-27 F, 1/8"-27 M × 7/32" barbed, 1/8"-27 F × 3/8"-18 M
- Range: Vacuum 0–28 inHg, Pressure 0–10 PSI
Key specs
- Tests: fuel pumps, carburettor valves, vacuum systems
- Units: PSI / inHg (plus kg/cm² & cm-Hg equivalents on scale)
- Brand: US PRO • Code: 5395
