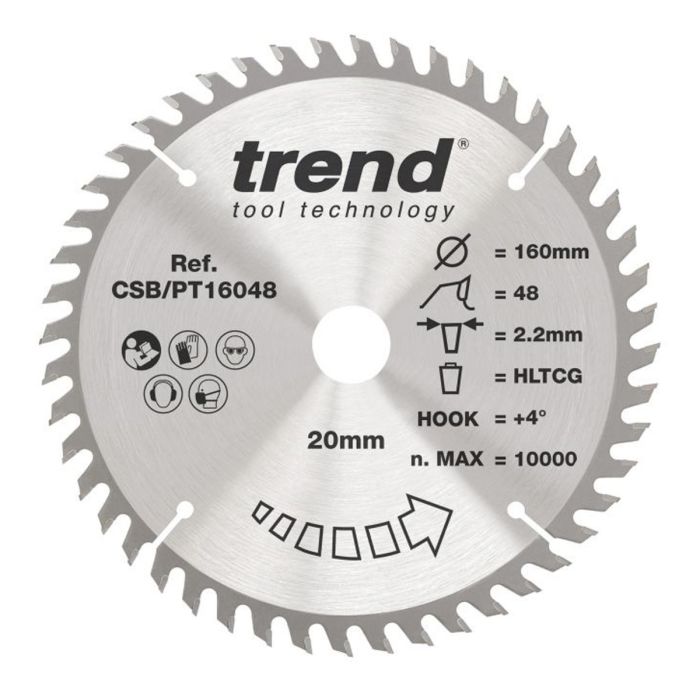

Trend Laminate/HPL Circular Saw Blade 160mm x 20mm x 48T CSB/PT16048

When the job demands a flawless edge, the blade behind the cut matters just as much as the saw itself. The Trend CSB/PT16048 is designed for tradespeople, fitters and workshop users who need clean, accurate results when working with laminate, HPL and other resin-based sheet materials. From trimming laminated panels to sizing chipboard worktops and veneered boards, this blade is built to deliver the kind of neat, controlled finish that helps reduce rework and improve the quality of the final installation.

At the heart of the blade is a 48 tooth Triple Chip Ground profile with a +4° hook angle, a combination developed to produce an ultra-fine finish in harder surfaced materials. This geometry helps the blade cut cleanly and steadily, making it especially well suited to decorative boards and laminates where edge quality is critical. The high tooth count reduces feed aggression and supports a smoother, more controlled cut, helping minimise breakout and chipping on finished surfaces.

Trend equips the blade with microgranular tungsten carbide tipped teeth that are designed for strong edge retention and consistent cut quality. In practical use, this means longer-lasting sharpness and dependable performance across repeated cuts in demanding sheet materials. The precision ground alloy steel plate helps maintain flatness, while the hardened and tempered body is built to minimise deflection under load. Together, these features support greater cutting accuracy and a more stable feel throughout the cut.

Expansion slots are built into the blade body to reduce vibration and noise while also helping dissipate heat during use. This not only improves operator comfort but also helps preserve cut quality during longer working sessions. The reamed 20mm bore ensures a precise spindle fit for reliable mounting and smooth running in compatible circular, plunge and table saws. With a 160mm diameter, 2.2mm kerf, 1.6mm plate thickness and maximum speed of 10,000rpm, this blade is a strong choice for users who want a professional finish on laminate and panel trimming applications.

For installers, kitchen fitters, joiners and cabinetmakers, the Trend CSB/PT16048 offers the balance of precision, finish quality and durability needed for detailed work in modern sheet materials. It is a reliable option when clean edges, controlled cutting and consistent performance are essential on site or in the workshop.

Key Features

• 160mm circular saw blade with 20mm bore
• 48 tooth design for super fine panel trimming
• Triple Chip Ground tooth form for ultra-fine finishes
• +4° hook angle for clean, controlled cutting
• Microgranular tungsten carbide tips for long edge life
• Precision ground alloy steel plate for improved stability
• Hardened and tempered body to minimise deflection
• Expansion slots reduce vibration, noise and heat build-up
• Reamed bore ensures accurate spindle fit
• Ideal for laminate, HPL, veneered panels and chipboard worktops
