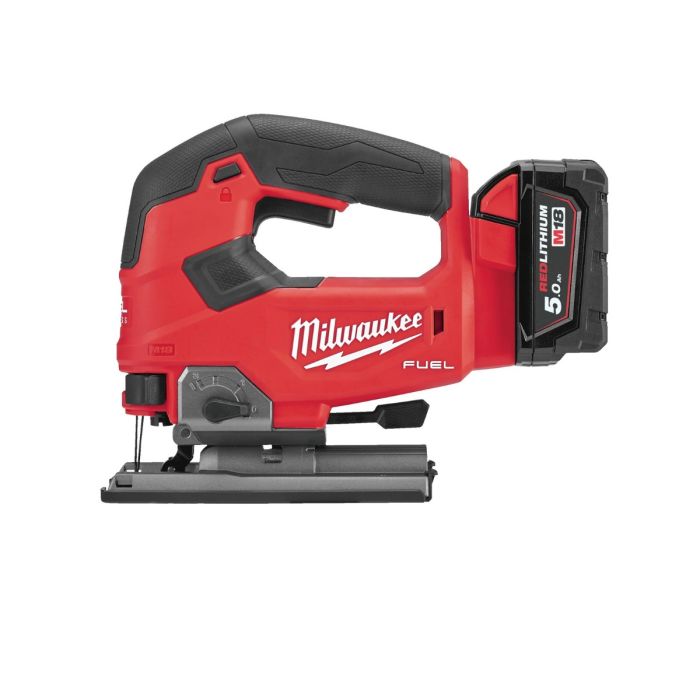

Milwaukee M18 FUEL Top Handle Jigsaw Kit

The Milwaukee M18 FUEL Top Handle Jigsaw Kit is designed for professional tradespeople who require precision cutting, smooth control, and long lasting performance across a wide range of materials. Built on Milwaukee’s advanced FUEL platform, this jigsaw combines cutting power, intelligent electronics, and ergonomic design to handle demanding site conditions with confidence.

At its core is a high performance POWERSTATE brushless motor that delivers fast, consistent cutting speed while extending tool life. When paired with the included M18 5.0Ah batteries, the jigsaw is capable of cutting up to 32 metres in 19mm OSB on a single charge, making it ideal for joinery, carpentry, installation work, and detailed finishing tasks where accuracy and efficiency are critical.

The saw features a five stage pendulum action that allows users to adjust cutting aggressiveness based on material type and application. This provides cleaner cuts in delicate materials and faster progress when working through thicker timber. A keyless bevel adjustment system enables quick angle changes between 0 and 45 degrees, ensuring precise bevel cuts without the need for additional tools.

Accuracy is further enhanced through an integrated LED work light and dust blower, keeping the cut line clearly visible even in low light or dusty environments. The FIXTEC blade clamp allows for fast, tool free blade changes, reducing downtime on site. A detachable soft shoe helps protect finished surfaces from marks and scratches, making the jigsaw suitable for both first fix and second fix work.

Supplied as a complete kit, this model includes two M18 5.0Ah batteries, a fast charger, and a durable HD Box for storage and transport. Fully compatible with all Milwaukee M18 batteries, the M18 FUEL Top Handle Jigsaw Kit is a reliable, professional solution for tradespeople who demand performance, control, and versatility from their cordless tools.

Key Features

• POWERSTATE brushless motor for fast cutting and extended tool life

• Five stage pendulum action for optimised cutting performance

• Keyless bevel adjustment from 0 to 45 degrees

• FIXTEC blade clamp for quick and easy blade changes

• Integrated LED light for improved visibility

• Dust blower keeps the cut line clear

• Detachable soft shoe protects delicate surfaces

• Smooth, low vibration operation for improved control

• Compatible with all Milwaukee M18 batteries

• Supplied as a complete kit including batteries, charger, and HD Box

Technical Specifications

• Voltage: 18V

• Battery Type: Li ion

• Battery Capacity: 5.0Ah

• Number of Batteries Supplied: 2

• Charger Included: Yes

• Stroke Length: 25mm

• No Load Stroke Rate: 0 to 3,500 spm

• Pendulum Action: Yes

• Pendulum Settings: 4

• Maximum Cutting Capacity Wood: 100mm

• Maximum Cutting Capacity Steel: 10mm

• Bevel Capacity: 45 Degrees

• Tool Weight Without Battery: Approx. 2.1kg

• Weight With Battery: Approx. 2.5kg

• Supplied In: HD Box

• Standard Equipment: Blade, dust extraction adapter, dust cover, splinter guard, soft shoe
