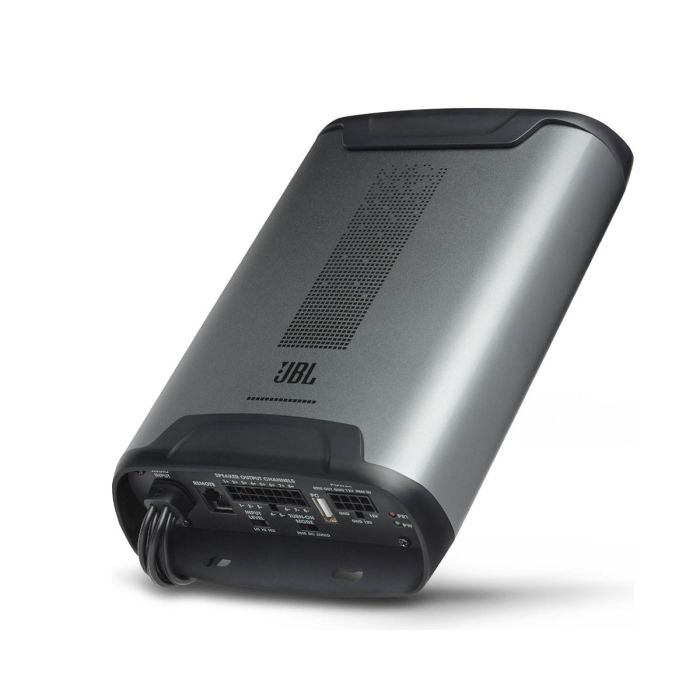

JBL DSP4086 – 8-Channel DSP Amplifier/Processor (40W x 8)
Ultra-compact 8-channel amplifier with built-in DSP: 40W x8 @4Ω, 60W x8 @2Ω. Full PC-tunable EQ, crossovers, time alignment and presets; 6 assignable inputs, 8 powered outputs. Includes wired remote for ch 7/8. Order now.
Supported Payment Types
JBL Stage 1200D – Dual 12" Ported Subwoofer Enclosure (2Ω, 500W RMS)
Previous
JBL’s DSP4086 combines clean multi-channel power with serious tuning. Feed up to six high- or low-level inputs from your factory or aftermarket system, then create eight powered, processed outputs—perfect for front/rear/tweeters or active front-stage builds. PC software (USB) gives you 31-band EQ (graphic or parametric), fully variable high/low/band-pass filters with selectable slopes, time delay up to 12 ms (0.2 ms steps), and 0/180° phase. Save up to 10 presets for fast recall. All in a compact chassis designed for easy installs and low current draw.
Key specs:
-
Power: 40 W x8 @4Ω, 60 W x8 @2Ω (Class D)
-
Inputs: 6 assignable high/speaker-level or RCA (adapters included)
-
Outputs: 8 powered, processed; save up to 10 presets
-
DSP tools: 31-band EQ (parametric/graphic), HP/LP/BP filters (20–20,000 Hz) with selectable 6–48 dB/oct slopes, time delay 0–12 ms (0.2 ms steps), phase 0/180°
-
Fuse: 40A (ATO); 8-gauge power/ground recommended
-
Dimensions: 5-11/16" W × 2" H × 9-3/8" D (approx.).
-
MFR #: DSP4086AM
What’s in the box:
-
DSP4086 amplifier with attached 6-RCA input harness
-
Wired remote level control for ch 7/8 + 16.5 ft cable
-
Power/ground/remote harness with inline 40A ATO fuse
-
16-pin speaker output harness
-
USB cable, RCA-to-set-screw adapters, spare 40A fuse
-
Mounting hardware and owner’s manual (multi-language)
