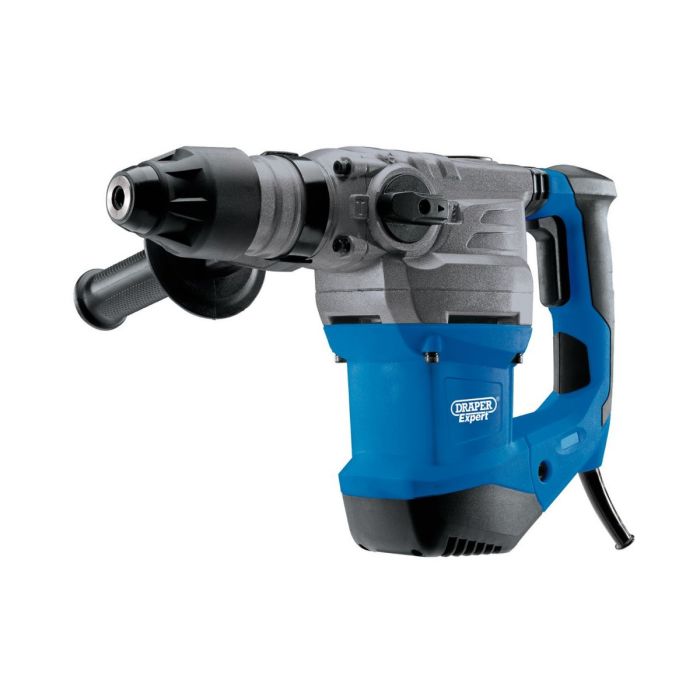

Draper Expert SDS Plus Rotary Hammer Drill 1500W 230V 56405

When standard hammer drills struggle with reinforced concrete or stubborn masonry, the Draper Expert SDS Plus Rotary Hammer Drill 1500W delivers the impact power and control professionals rely on.

Built for serious site and renovation work, this 230V SDS+ rotary hammer combines a robust 1500W motor with an impressive 5.5 joules of impact energy, allowing it to tackle heavy masonry drilling up to 32mm in concrete. Whether you're installing anchor bolts, breaking out channels, removing tiles, or chiselling brickwork, this machine is engineered for performance and durability.

Four Versatile Operating Modes

The drill features four selectable functions:

• Rotary Drill – For drilling into wood and steel

• Hammer Drill – For masonry and concrete

• Chisel Mode – For demolition and material removal

• Chisel Lock – Allows precise chisel angle positioning

This versatility makes it suitable for electricians, plumbers, builders, and serious DIY users carrying out structural alterations or first-fix installations.

Built for Durability and Control

An all-metal gearbox ensures strength and long service life under load, while the integrated safety clutch protects both the user and internal components if the bit binds. The anti-vibration handle improves comfort during extended operation, reducing fatigue on repetitive tasks.

The SDS+ chuck system enables quick, tool-free bit changes while maintaining a secure drive connection for efficient energy transfer.

Real-World Applications

• Drilling fixing holes in reinforced concrete

• Breaking out brickwork for door/window installations

• Removing plaster, tiles, and render

• Channel cutting for cable and pipe installation

• Heavy-duty renovation and demolition tasks

With a no-load speed of 860rpm and a maximum impact rate of 4250 blows per minute, the drill maintains consistent performance under demanding conditions.

Key Features

• Powerful 1500W motor

• 5.5 Joules impact energy for heavy-duty masonry work

• 4 operating modes: Drill, Hammer Drill, Chisel, Chisel Lock

• All-metal gearbox for long-term durability

• Integrated safety clutch

• Anti-vibration auxiliary handle

• SDS+ chuck system for quick bit changes

• Supplied in carry case

• 2.2m cable with BS plug

Technical Specifications

• Power: 1500W

• Voltage: 230V

• Impact Energy: 5.5 Joules

• Max Impact Rate: 4250 bpm

• No Load Speed: 860 rpm

• Max Drilling Capacity (Masonry): 32mm

• Max Drilling Capacity (Steel): 13mm

• Max Drilling Capacity (Wood): 43mm

• Chuck Type: SDS+

• Cable Length: 2.2m

• Weight: 5.2kg

• Supplied In Case: Yes

• Warranty: 36 Months (Extended registration required)

What’s Included

• 1 x Draper Expert SDS+ Rotary Hammer Drill 1500W 230V

• 1 x Adjustable side handle

• 1 x Pointed chisel

• 1 x Flat chisel

• 3 x SDS+ drill bits

• 1 x Carry case

• 1 x 2.2m cable with BS plug
