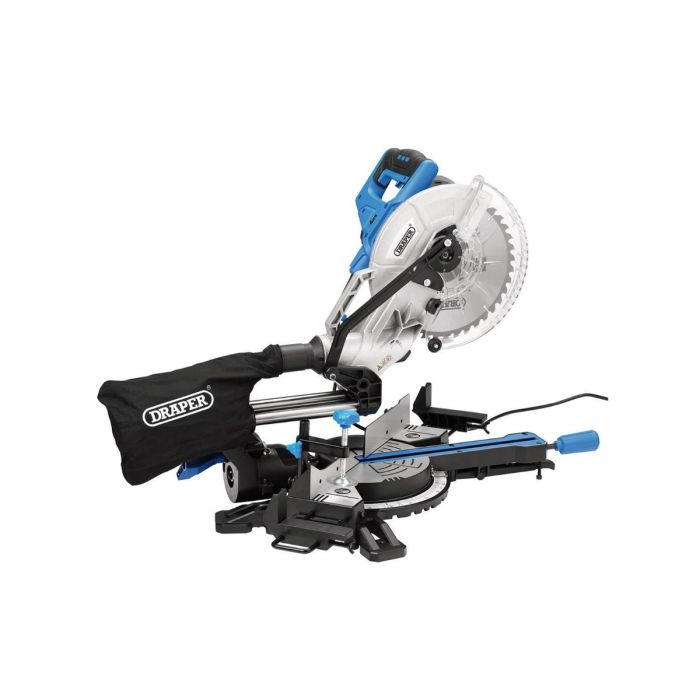

When you need repeatable accuracy across skirting, framing timber, and sheet materials, the Draper 90170 Sliding Compound Mitre Saw is designed to keep cuts true and workflow smooth. The sliding pull action increases cutting reach, while the depth stop enables controlled trenching, ideal for housing joints and repetitive fit-out work.
A built-in laser beam cutting guide helps you preview the blade path before the cut, giving you confidence on fine trims and long crosscuts. The aluminium base keeps the saw stable yet easy to move between jobs, and practical add-ons like extension wings and a stop bar help support longer workpieces for safer, more accurate cuts.
For cleaner working, the saw includes an integral dust extraction outlet and dust bag, helping reduce mess during indoor or bench work. Supplied ready to use with a 40T TCT saw blade, plus hex key and collection bag, and backed by a 24 month warranty.
Key Features
-
Sliding pull action for improved cutting capacity and accuracy
-
Depth stop allows precise trenching operations
-
Laser cutting guide to preview blade path
-
Aluminium base for stability and easier portability
-
0 to 45 degree bevel cutting
-
Workpiece clamp for safer, steadier cutting
-
Extension wings and stop bar for supporting longer workpieces
-
Dust extraction outlet and dust bag for cleaner operation
Specifications
-
Voltage: 230V
-
Power: 1800W
-
Blade Diameter: 255mm 10 inch
-
Bore: 30mm
-
No Load Speed: 5000 rpm
-
Max Cross Cut Capacity: 75 x 305mm
-
Max Mitre Cut Capacity: 75 x 210mm
-
Max Bevel Cut Left: 38 x 305mm
-
Max Compound Cut Left: 38 x 210mm
-
Weight: 14kg
-
Warranty: 24 months
What’s Included
-
Draper 90170 sliding compound mitre saw
-
40T TCT saw blade
-
Dust collection bag
-
Hex key
-
Fitted cable and approved plug
