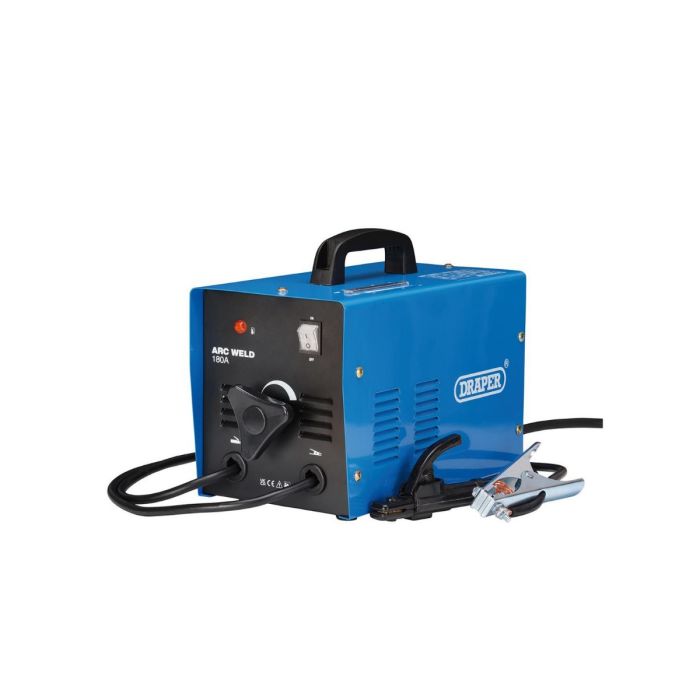

The Draper 69939 ARC Welder 180A 230V is built for practical fabrication and repair work where control matters as much as power. Designed to deliver reliable performance with added protection, it features thermal overload protection and fan cooling to help maintain stable operation during demanding jobs.
With stepless current adjustment, you can fine-tune the output rather than jumping between fixed settings—ideal for improving weld quality across different material thicknesses and electrode sizes. It supports 1.6mm to 4.0mm electrodes and offers an amperage range of 70 to 180A, making it a solid option for general workshop maintenance, gates and brackets, farm repairs, and light fabrication tasks.
Portable by design, the welder is housed in a robust, lightweight case with a carry handle, and it’s supplied with essential accessories to get you started, including an electrode holder, earth clamp, chipping hammer with wire brush, and a face mask. Please note: a 16A plug is required and is not fitted.
Key Features
-
Stepless current adjustment for fine control
-
Amperage range 70 to 180A
-
Suitable for 1.6mm to 4.0mm electrodes
-
Fan cooled for improved duty performance
-
Thermal overload protection
-
Portable design with carry handle
-
230V supply, 16A plug required not supplied
Specifications
-
Brand: Draper
-
Model: 69939
-
Welding Type: ARC
-
Amperage Range: 70 to 180A
-
Power Supply: 230V
-
Plug Fitted: No, 16A plug required
-
Duty Cycle: 10% at 180A, 60% at 73A
-
Electrode Size: 1.6mm to 4.0mm
-
Dimensions: 345 x 180 x 280 mm
-
Weight Net: 17.5 kg
What’s Included
-
1 x Electrode holder 200A
-
1 x Earth clamp 300A
-
1 x Chipping hammer with wire brush
-
1 x Face mask
